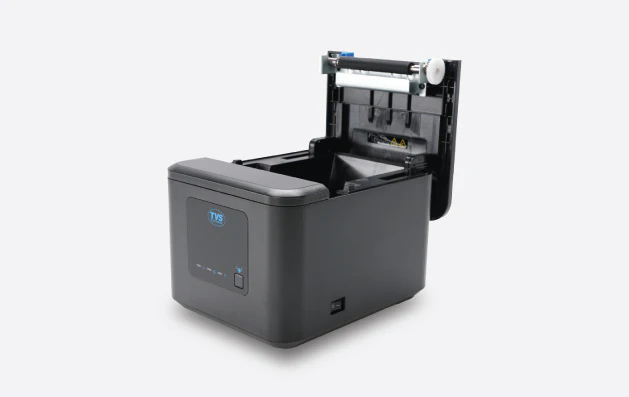

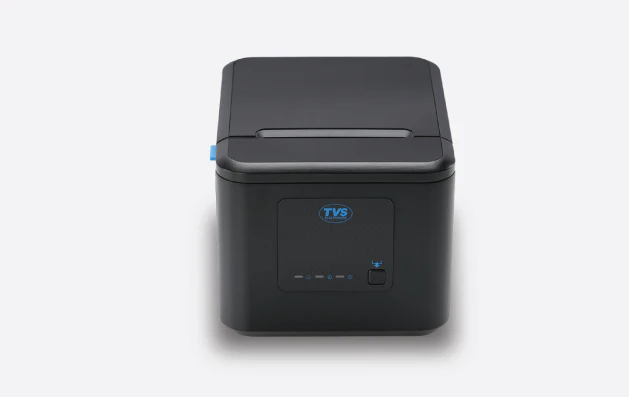

RP 3230 ABW is the latest addition to our renowned Thermal Receipt Printer series. This printer offers flexible connectivity through USB, Bluetooth, or Wi-Fi, and supports cash drawer integration. It ensures fast, jam-free receipt printing with a simple paper-loading mechanism. The stylish, illuminated design includes intuitive LED status indicators, while its compact size makes it easy to fit into any space, with optional wall mounting.
- Printing Method
- Direct thermal printing
- Resolution
- 203 DPI (8 dots /mm)
- Print Width
- 72 mm / 48 mm
- Print Speed
- Max. 230 mm /s
- Emulation
- ESC/POS
- Page Mode
- Support
- Page Type
- Thermal continuous paper
- Paper width
- 79.5±0.5mm/57.5±0.5mm
- Paper Container
- Max. 83mm
- Paper Feed
- Upward feed direction
- Standard
- USB + Bluetooth + Wifi
- Barcode 1D
- UPC-A, UPC-E, Code 39, Code 93, Code 28, EAN8, EANI3, Interleaved 2 of 5,Codabar
- Barcode 2D
- QR Code, PDF417
- Chinese Character
- Simplified /Traditional (24 * 24 dots)
- English Character
- ASCII: Font A 12*24, Font B 9*17
- Code Page
- 47
- Graphics
- Support bitmap printing and bitmap downloading with different density and user defined (Max. 64K for each bitmap and the total bitmap cannot exceed 512K)
- Buzzer
- Internal buzzer kitchen bell (optional)
- Sensor (Standard)
- Paper end, cover opening, cutter jam, TPH over-temperature
- Sensor (Optional)
- Black mark sensor
- RAM
- 4 MB
- Flash
- 4 MB
- Input Power
- AC 100V-240V, 50/60Hz
- Output Power
- DC 24V 2A
- Driver
- Windows 7/8/10, Windows Server 2008 /2012 /2016 Linux, Javapos,OPOS, MacOS
- Utility Tool
- Windows 7/8/10, Windows Server 2008 /2012 /2016
- TPH Life
- 100 km
- Cutter Life
- 1,500,000 times
- Operating
- 0-45°C / 5-95%RH No condensation
- Storage
- 20-70°C / I5-95%RH No condensation
- Certification
- BIS
- Weight
- 0.916 kg
- Dimension LxWxH
- 140 * 179 *117 mm
