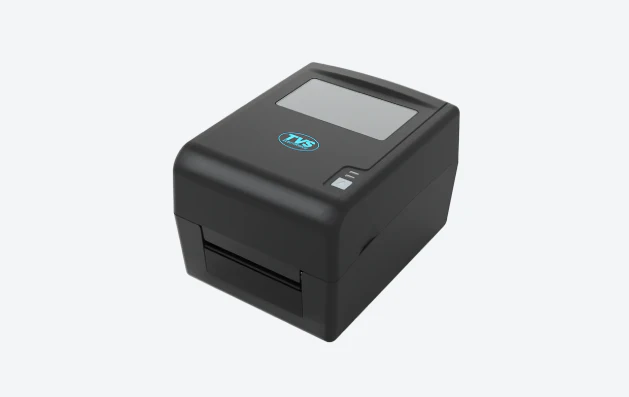

The LP 46 Dlite Barcode Printer is an advanced solution offering unmatched reliability for high-resolution label and barcode printing. Utilizing the latest technology to elevate label printing with the USB interface, increased storage capacity and a high ribbon capacity, the printer is designed for convenience and efficiency. Its compact space saving design, combined with quick installation process, and transparent window for easy monitoring make it an ideal choice for businesses looking to streamline their printing operations.
- Print method
- Thermal/Thermal transfer
- Resolution
- 203DPI | 300DPI
- Print width
- 108mm(Max.) | 106mm (Max.)
- Print speed
- 152mm/s (Max.) | 102mm/s(Max.)
- Memory:SDRAM
- 32MB
- Flash
- 16MB(64MB optional)
- Sensor
- Photoelectric sensor
- TPH temperature detection
- Thermistor
- TPH position detection
- Microswitch
- Interface
- Standard
- USB port
- Optional: RS232 serial port, Ethernet, Bluetooth, WiFi (Bluetooth or WiFi)
- CPU
- 32bit RISC MCP
- Barcodes
- 1D
- Code39, Code93, Codabar,Code128 (Subsets A, B, and C), EAN-13,EAN-8,UPC-A, UPC-E, UPÂC/EAN Extensions, Planet Code, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, G51 Data Bar(RSS)
- 2D
- PDF 417,MicroPDF417,QR Code, DataMatrix, MaxiCode, GS1 Composite
- Character enlargement/rotation
- Rotate (0°, 90°, 180°, 270°) Enlarge (1-10x)
- Vector fonts support stepless scaling
- Character set
- Built in 7 dot matrix fonts and 1 vector font. Support users to download dot matrix fonts and vector fonts
- Graphical
- Binary non-format bitmap, HEX, PCX, BMP and IMG can be download to FLASH, RAM
- Paper type
- Continuous paper, marking paper, label paper, perforated paper
- Paper width
- 118mm (Max.)
- Paper roll OD (Max.)
- 127mm (5 inch)
- Paper roll ID
- 25.4mm (1 inch) / 38mm (1.5 inch)
- Paper out
- Tear off/ Rewind/ Peel off (optional)/ Cut (optional)
- Paper thickness
- 0.06-0.25mm
- Ribbon length
- 300m (Max.)
- Ribbon ID
- 12.7mm/25.4mm
- Button, Indicators
- 1 button, 2 indicators
- Input
- 100-240V AC, 50-601-b
- Output
- 24V DC, 2.5A
- Operation conditions
- 5-45°C, 20 – 90%RH(40°C)
- Storage conditions
- -40-60°C, 20 – 93% RH(40°C)
- Dimensions
- 280mm (L) x 218mm (W) x 180mm (H)
- Weight
- About 2.3kg
