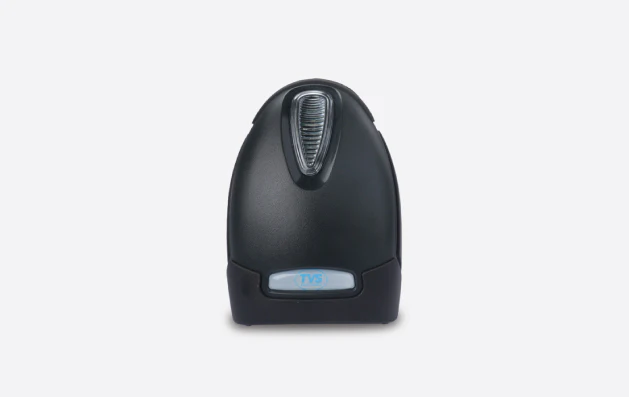

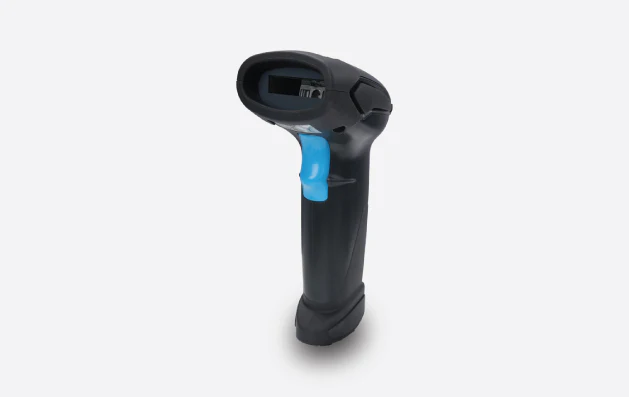

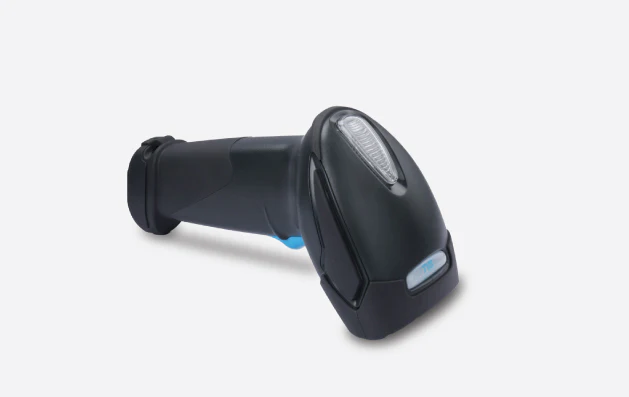

With the ability to do 330 scans per second, the BS-C103 Platina results from the state-of-the-art design, robust functionality and the latest tech in a single device, empowering businesses with speed and progress with every trigger.
- Light Source
- 617 nm visible red LED
- Optical System
- Linear CCD array
- Image Sensor
- 2500 pixels CCD
- Depth of Field
- 20 – 320 mm (UPC/EAN 100%, PCS=90%)
- Scan Angle
- 42°
- Pitch/Roll/Skew Angle
- 75°/ 25°/ 60°
- Scan Rate
- 330 scans per second
- Minimum Bar Width
- 0.07 mm (3 mil) (Code 39, PCS = 90%)
- Print Contrast
- Min. 20 % @ UPC/EAN 100%
- Indicator (LED)
- Beeper and LED
- optional vibrator
- Programmable Operation
- Beeper tone & volume
- System Interfaces
- Keyboard
- RS-232
- HID USB
- USB Virtual
- COM
- wand
- OPOS
- JPOS
- Dimension
- 147.0*62.0*114.5 mm (device only)
- Weight
- 120 g (device only)
- Interface Cable
- Field replaceable
- standard 2M straight
- Input Voltage
- 5 VDC ±5%
- Power Consumption
- 0.6 watts
- Operating Current
- 110 mA typical
- EMC
- CE & FCC DOC compliance
- VCCI
- BSMI
- Safety
- IEC 62471 Exempt
- Operating Temperature
- 0°C – 50°C (32°F – 122°F)
- Storage Temperature
- -20°C – 60°C (-4°F – 140°F)
- Humidity
- 5% – 95% RH (non-condensing)
- Light Level
- 0-100,000 Lux(fluorescence)
- Drop Durability
- 1.5 m drop resistance
- Environmental Sealing
- IP 41
- 1D Barcode
- UPC/ EAN/ JAN
- UPC-A & UPC-E
- EAN-8 & EAN-13
- JAN-8 & JAN-13
- ISBN /ISSN
- Code 39
- Codabar
- Code 128 & EAN 128
- Code 93
- ITF
- Addendum 2 of 5
- IATA Code
- MSI/Plessy
- China Postal Code
- Code 32
- Industrial 2 of 5
- Standard 2 of 5
- DTF
- JAP
- Code 11
- RSS 14
- RSS Limited
- RSS Expanded
- Warranty
- 1 Year
