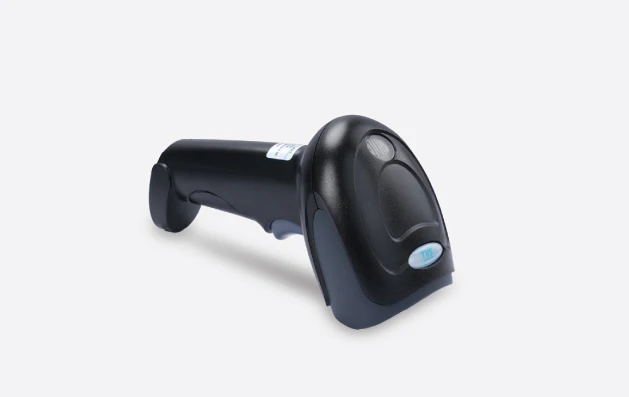

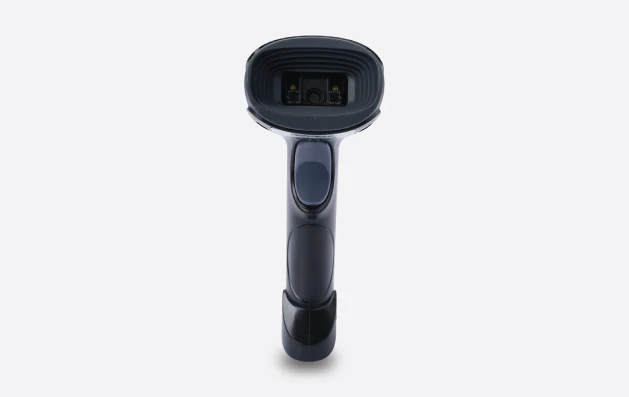

Enabled with 2.4 GHZ Bluetooth technology and a 100m range, the BS-i203G+BT is the perfect scanner for modern business operations enabling businesses with better data reading, ample character storage and longer battery life.
- Scan mode
- Automatic / Manual
- Alarm mode
- LED light alarm, Buzzer alarm
- Light Source
- (Aimer) Red color LED
- (Illumination) White color LED
- Image (Pixels)
- 1280(H) *800 pixels (V)
- 1 Million Pixels
- Scan angle
- 28°(Horizontal)
- 20°(Vertical)
- Roll / Pitch / Yaw
- 360°(Roll), ±65°(Skew) , ±65°(Pitch)
- Scan depth of field
- 5 mil (Code 39) 30~120mm | 13 mil (UPC/EAN) 30~305mm | 20 mil (Code 39 ) 30~450mm | 10 mil (QR code) 40~225mm | Minimum-35mm, Maximum-165 mm
- Barcode type
- 1D: Codabar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industrial, Straight 2 of 5 IATA，Matrix 2 of 5，Code 11, Code128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omni directional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post (Hong Kong 2of 5). Korea Post.
- 2D: PDF417, QR code, Matrix 2 of 5, MicroPDF417, Australian Post, Canada Post, Japan Post, MaxiCode, Codablock, Aztec, Dutch Post, DataMatrix, etc.
- Voltage
- +4.2V±10% VDC
- Battery capacity
- 2500mAh
- Current Starting
- Current:204mA
- Stand-by Current:96mA
- Work Current:226mA
- Interfaces
- 2.4G
- Bluetooth
- Print Contrast
- 20% minimum reflective difference
- Ambient Light Immunity
- 0-100,000 Lux
- Operating temperature
- -20°C ~ 60°C
- Storage temperature
- -30°C ~ 70°C
- Humidity
- 5% to 95% relative humidity
- non-condensing
- Drop
- Drop Designed to withstand 1.5 meters (5’) drops
- Dimensions (L*W*H)
- 159.99*69.38*107.61 mm
- Weight
- 188.5 g
- Color
- black
- Material
- ABS + EVA
