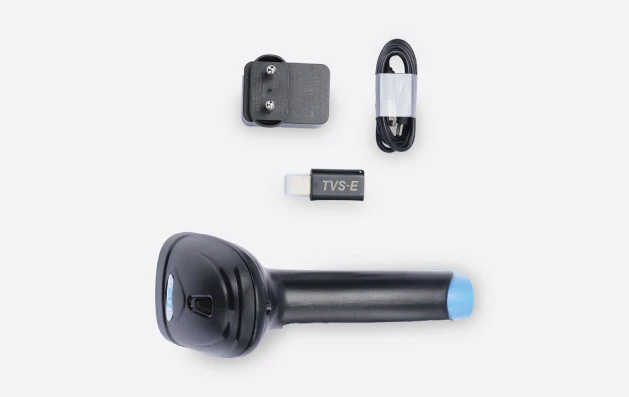

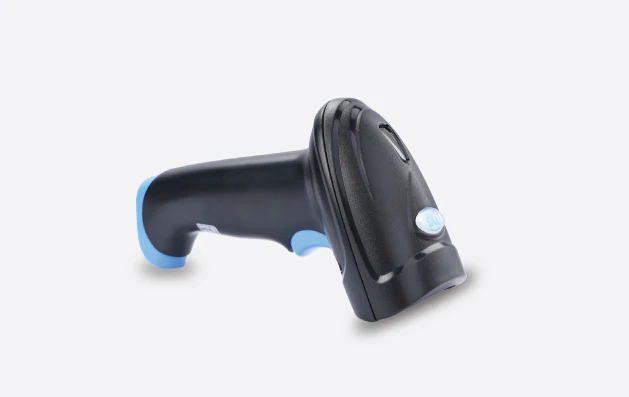

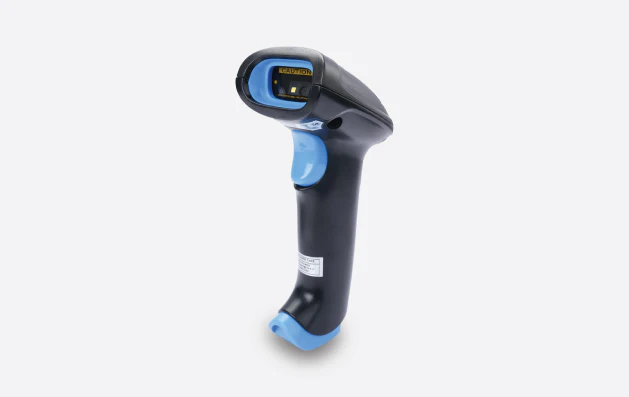

Discover the ultimate in efficiency and durability with our economical 2D wireless scanner with the ability to decode even poorly printed or damaged barcodes. Lightweight and rugged, it offers a comfortable, durable scan button. With improved offline and inventory storage modes and a robust, long-lasting 6-hour battery backup, this scanner is your reliable partner for seamless operations and inventory management.
- Light Source
- 617nm LED Aimer
- White LED
- Supported
- 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleave 2 of 5, ITF-6, ITF-4, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5.
- 2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Micor QR, Micor PDF417, Hanxin Code
- Resolution
- Resolution
- Scan mode
- Manual /Continuous /Automatic
- Induction Scanning
- Scan speed: 150 scans per second
- Scan angle: Yaw±55°, Rotation 360°, Pitch±55°
- Precision: ≥5mil
- Contrast: ≥20%
- Depth of scan field: EAN13 50-200 mm (13 million); QR 25-240 mm (20 million); PDF417 30-130 mm (6.67 million)
- Error rate
- 1 /5 million
- Interface
- USB-HID
- Communication mode
- Pairing dedicated
- receiver
- 2.4G communication | Pairing Mobile
- Bluetooth Devices
- Bluetooth BLE 4.0
- Transmission distance
- 30 – 50 meters (Open distance)
- Storage mode
- Offline storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 512000 characters.
- Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters.
- Pairing Mode
- One to One: One Scanning Gun Pairs One Receiver | One scanner paired with a Bluetooth mobile device
- Operating temperature
- -20℃~50℃
- Storage temperature
- -40℃~70℃
- Relative humadity
- 5% ~95% RH (Non condensing)
- Dimensions
- 90*66*173 mm
- Weight
- 130g
- Cable length
- 1.2 meters
- Drop shock resistence
- Withstands multiple times 3 meters drops to concrete
- Material
- ABS+PC
- Voltage
- DC5V±5%
- Operating current
- when not scanning code ≥26mA
- Battery working time
- 6 hours
- Lithium battery
- 1400mA
- Standby current
- 0mA (Standby is to cut off battery power)
- Charging time
- 3.5 hours
- Charge mode
- Square USB charging cable
- plug straight charge
