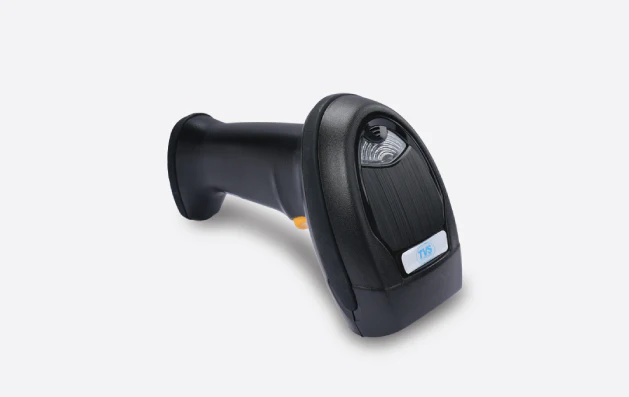

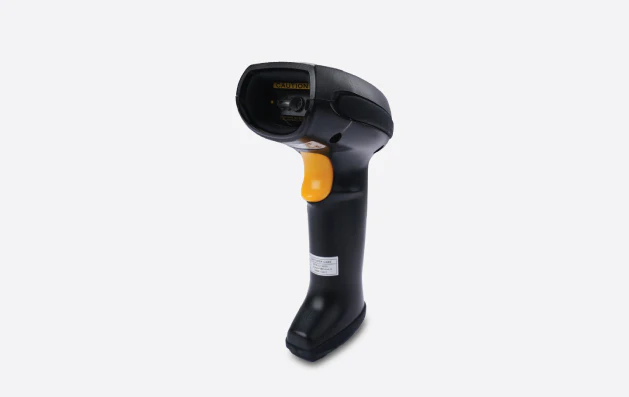

BS-i201 S BT is a best-in-class 2D Bluetooth scanner that provides wireless connectivity upto 25 metres of Line of Sight and is an excellent choice for small warehouses, separtmental stores, and shopping malls.
- Light source
- 617 nm LED Aimer
- White LED
- Supported symbologies
- 1D : EAN8, EAN13, UPCA, UPCE, CODE 39, CODE 93,CODE 128, EAN 128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI Plessey, GS1 Databar, Industrial 25, Standard 25 etc
- 2D : QR code, Data Matrix, PDF 417, Aztec, Maxi code
- Scan Type
- Image CMOS
- Scan Speed
- 200 scans/sec
- Scan angle
- Yaw 55°
- Rotation 30°
- Pitch 55°
- Precision
- 5mil
- Contrast
- 20%
- Error rate
- Less than 1/5 million
- Interface
- USB HID
- Dimensions
- 102*71*177 mm
- Wireless Transmission Distance
- ~ 25 mts
- Storage mode
- Offline Storage mode:
- When scanner exits the connection range the data is automatically stored
- Storage capacity is 512000 Characters
- Inventory Storage mode
- The scanner can enter the inventory storage mode
- Storage capacity is 512000 Characters
- Pairing mode
- One to one:
- One One scanning gun pairs one receiver
- One scanner paired with Bluetooth mobile device

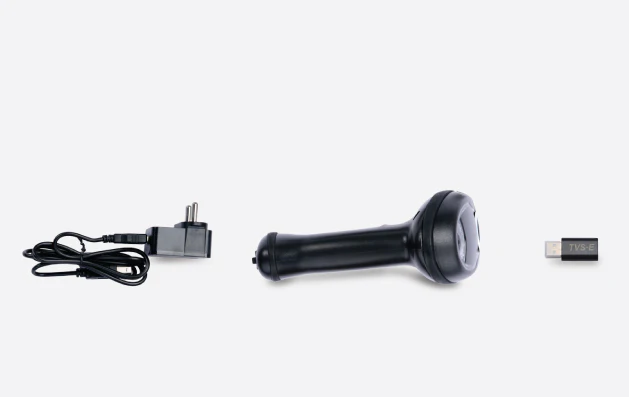

- Receiving end
- Dedicated BT U disc receiver connecting android iOS mobile devices
- Light level
- can resistive the interference of lamplight and sun shiningty
- Weight
- 223 g
- Operating Temperature
- 20°C~50°C
- Storage temperature
- 40°C~70°C
- Relative Humidity
- 5%~95%
- Battery working time
- 7 hrs
- Battery
- Lithium battery
- 2200 mA
- Drop / Shock resistance
- Withstands a 1.5m drop from concrete
- Voltage
- DC 5V ± 1%
- Operating Current
- When scanning code =26 mA
- Not scanning: = 280 mA
- Standby current
- 0 mA
