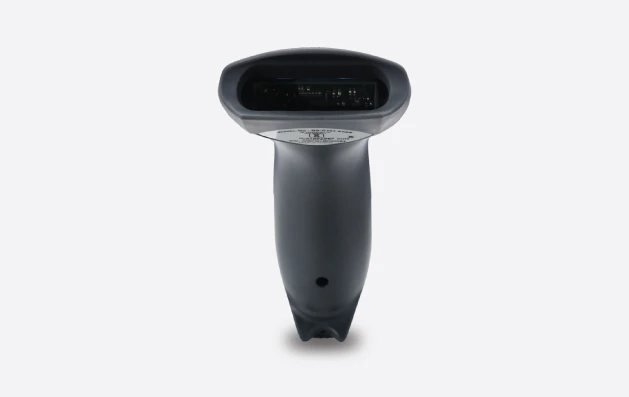

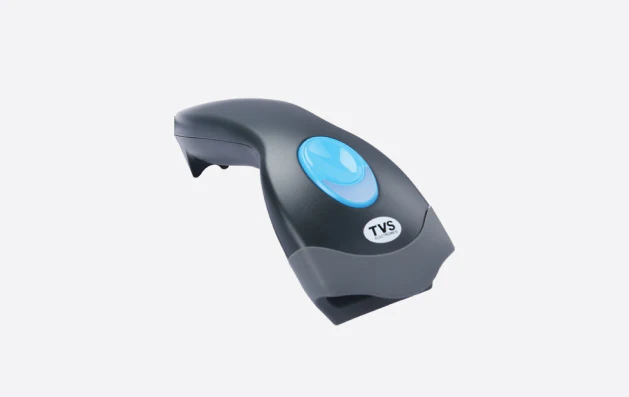

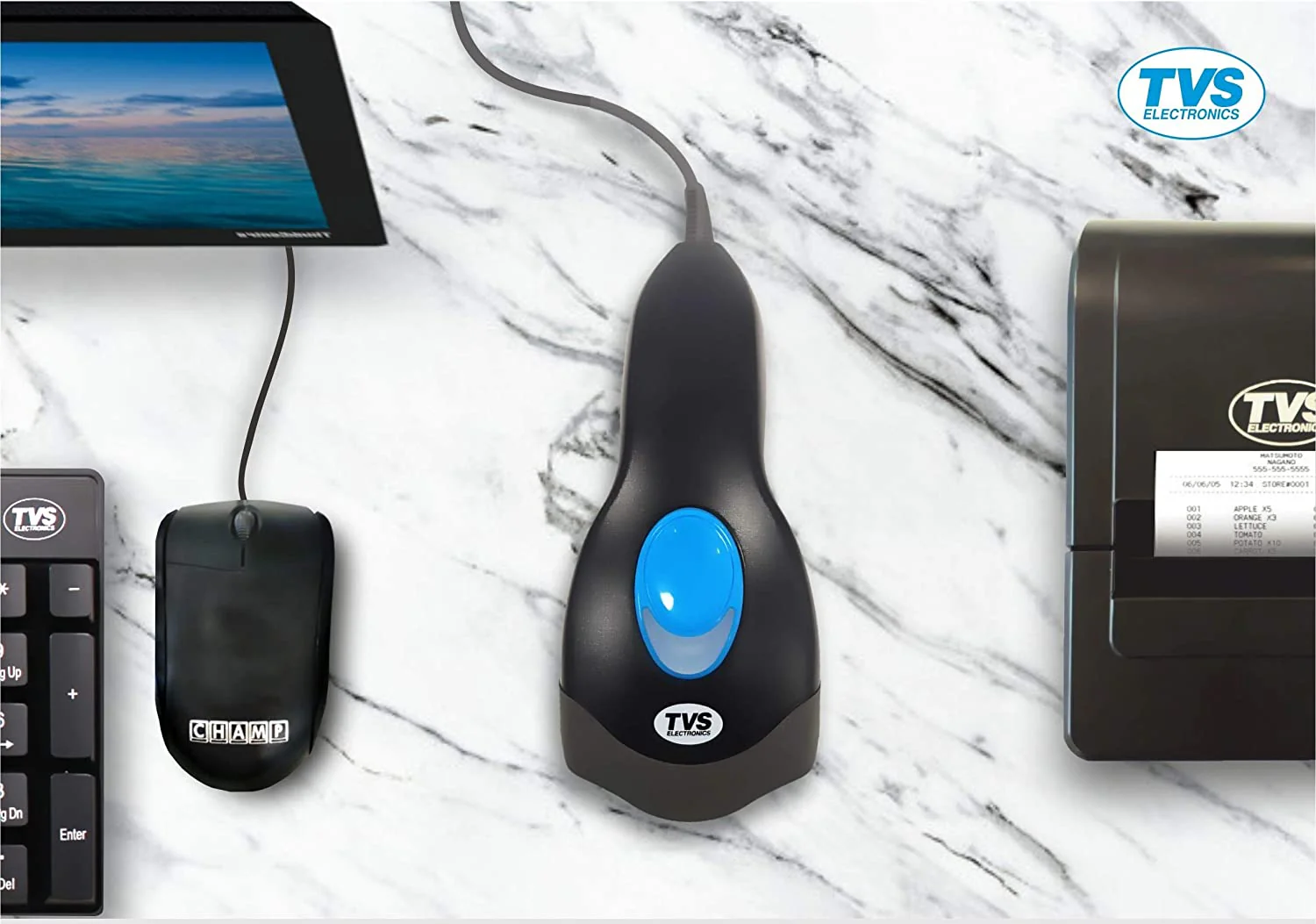

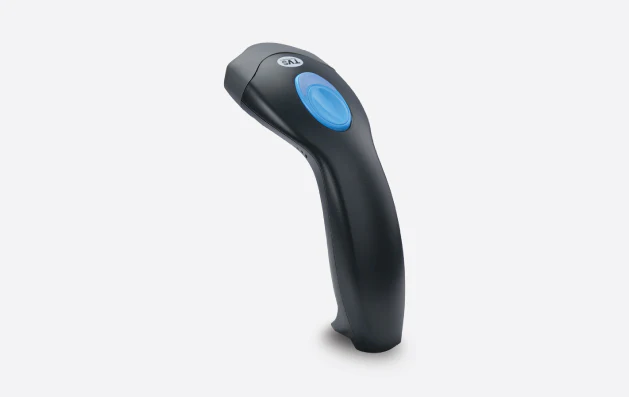

The all new BS-C101 Star is the fastest scanner in this segment and has multiple features that make it a true star.The scanner is highly durable and easy to handle, making it effective for faster customer checkouts. It has an unbeatable first-read scan success rate, making it a great business companion.
- Light Source
- 650 nm visible laser diode VLD
- MPU
- 32 bit
- Depth of Field
- 35 200 mm UPC/EAN 100%
- PCS=90%
- Scan Rate
- 330 scans per second
- Scan Angle
- 52°
- Pitch / Roll / Skew angle
- 65° / 30° / 65
- Minimum Bar Width
- 4 mil @ PCS=90% Code 39
- Print Contrast
- 30% @ UPC/EAN 100%
- Indicators LED
- Three colour LED green
- red & blue
- Beeper Option
- Programmable tone & beep time
- System Interfaces
- Keyboard
- RS232C
- HID USB
- wand
- Physical Dimensions
- L106.7 x D 58.0 x H 155.0 mm device only
- Weight
- 148 g stand excluded
- Cable
- Standard 2.0M straight
- Input Voltage
- 5 VDC ±10%
- Power Consumption
- 1.0 watts
- Operating Current
- 200 mA
- Laser Class
- CDRH Class Iia: IEC 608251: Class 1
- EMC
- CE & FCC DOC compliance
- VCCI
- BS
- Operating Temperature
- 0°C – 40°C
- 32°F – 104°F
- Storage Temperature
- 20°C – 60°C
- 4°F – 140°F
- Operating Humidity
- 5% – 95% RH noncondensing
- Light Levels
- 4,500 Lux fluorescence
- Drop Durability
- Designed to withstand 1.0 M drops
- Barcode
- Most popular 1D barcodes
- incl. GS1 DataBar & PDF 417
