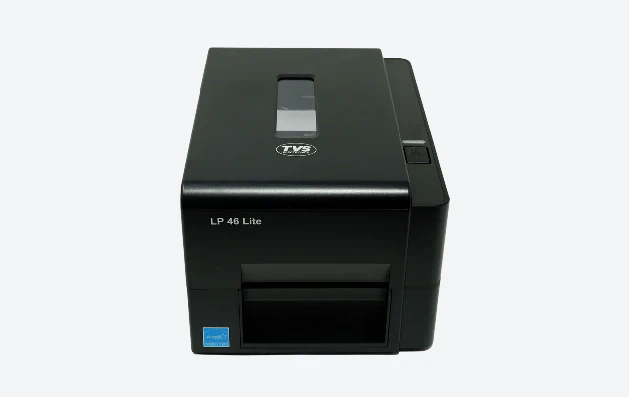

The LP 46 Lite is a perfect desktop label printer that offers unmatched reliability.It leverages the latest technology to elevate label printing with fast print speeds Its compact design, combined with durable build makes it an ideal choice for environments such as retail, logistics, hospitality, and manufacturing.
- Resolution
- 8 dots/mm 203 DPI
- Printing Method
- Thermal Line Printing – Direct | Thermal & Thermal Transfer
- Print Speed
- Max. 152.4 mm 6”/second
- Print width
- Max. 108 mm 4.25“
- Print Length
- Max. 2,794 mm 110“
- Physical Dimension
- 204 mm W x 164 mm H x 280 mm D
- Weight
- 2.4 kg 5.29 lbs
- Lable roll capacity
- 127 mm 5“ OD
- Ribbon
- 300 m long, max. OD 67 mm, 1” core ink coated outside
- Ribbon Width
- 40 mm to 110 mm 1.6” ~ 4.3”
- Processor
- 32 bit RISC CPU
- Memory
- 8 MB Flash memory, 16 MB SDRAM
- Interface
- USB 2.0
- Power: Input
- AC 100240V, 2.5A, 5060Hz, Output: DC 24V, 2.5A, 60W
- Sensors
- Transmissive gap sensor, Black mark reflective sensor position adjustable
- Barcode
- 1D bar code: Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit,Code 39, Code 39 with check digit, Code 93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 5 digits addon,Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, Code 11, TELEPEN, TELEPENN,PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
- Barcode
- 2D bar code: GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417
- Printer Language
- TSPLEZTM Compatible to EPL, ZPL, ZPL II
- Media type
- Continuous, diecut, black mark, fanfold, notched outside wound
- Media Width
- 20 ~ 112 mm 0.8“ ~ 4.4“
- Media Thickness
- 0.06 ~ 0.19 mm 2.36 ~ 7.48 mil
- Media Core Diameter
- 25.4 ~ 38 mm 1” ~ 1.5”
- Label length
- 5 ~ 2,794 mm 0.2“ ~ 110“
- Environment Condition
- Operation
- 5°C ~ 40°C, 25 ~ 85% noncondensing
- Storage
- ~40°C ~60°C, 10 ~ 90% noncondensing
